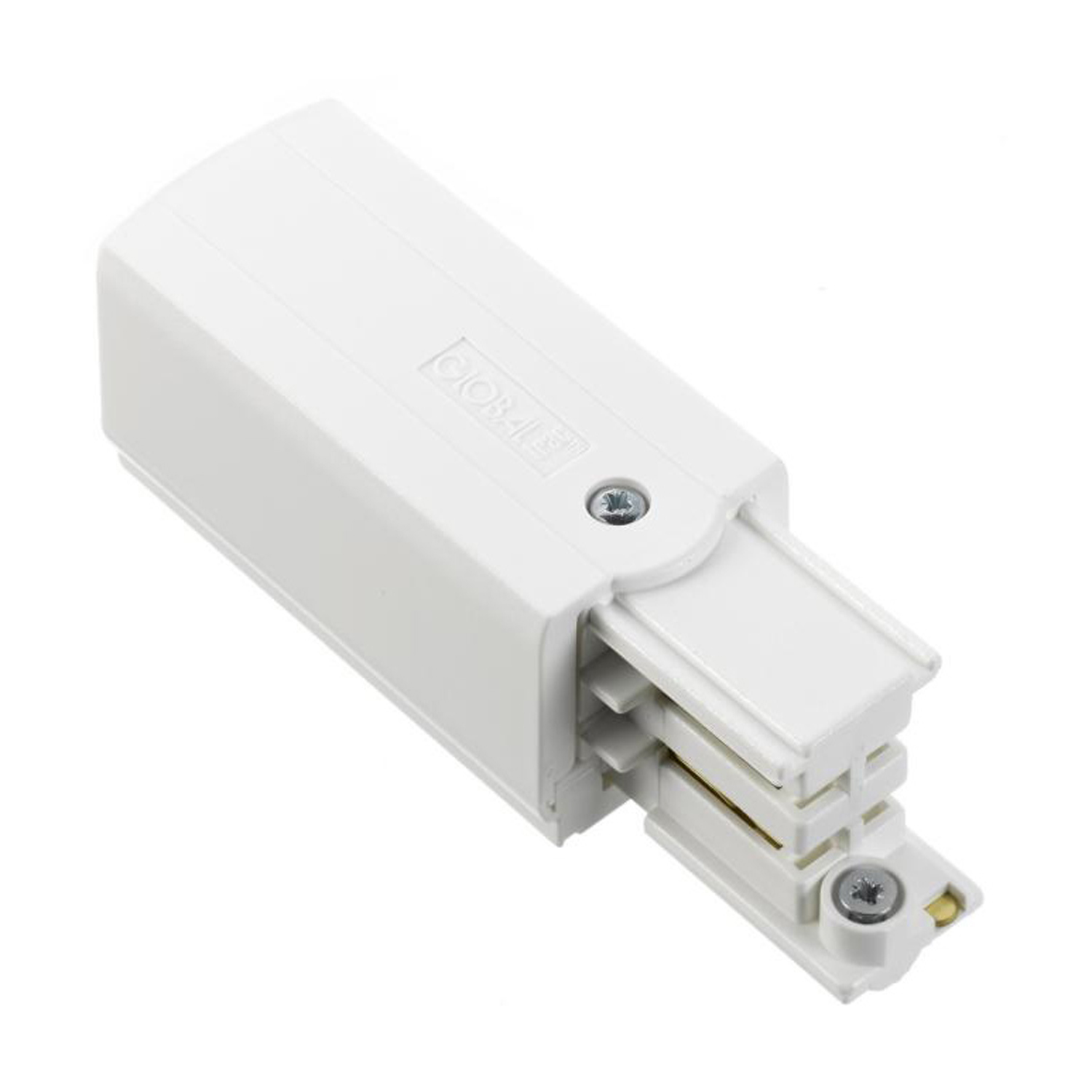

XTS11-3
End Feed • 105 x 66 mm • Matt White • 1/100 per pack
Live end feed for the Nordik Global Track system. Terminates the run and brings mains supply into the track. Available in matt black and matt white to match the track profile.
| A | 105 mm |
|---|---|
| B | 66 mm |

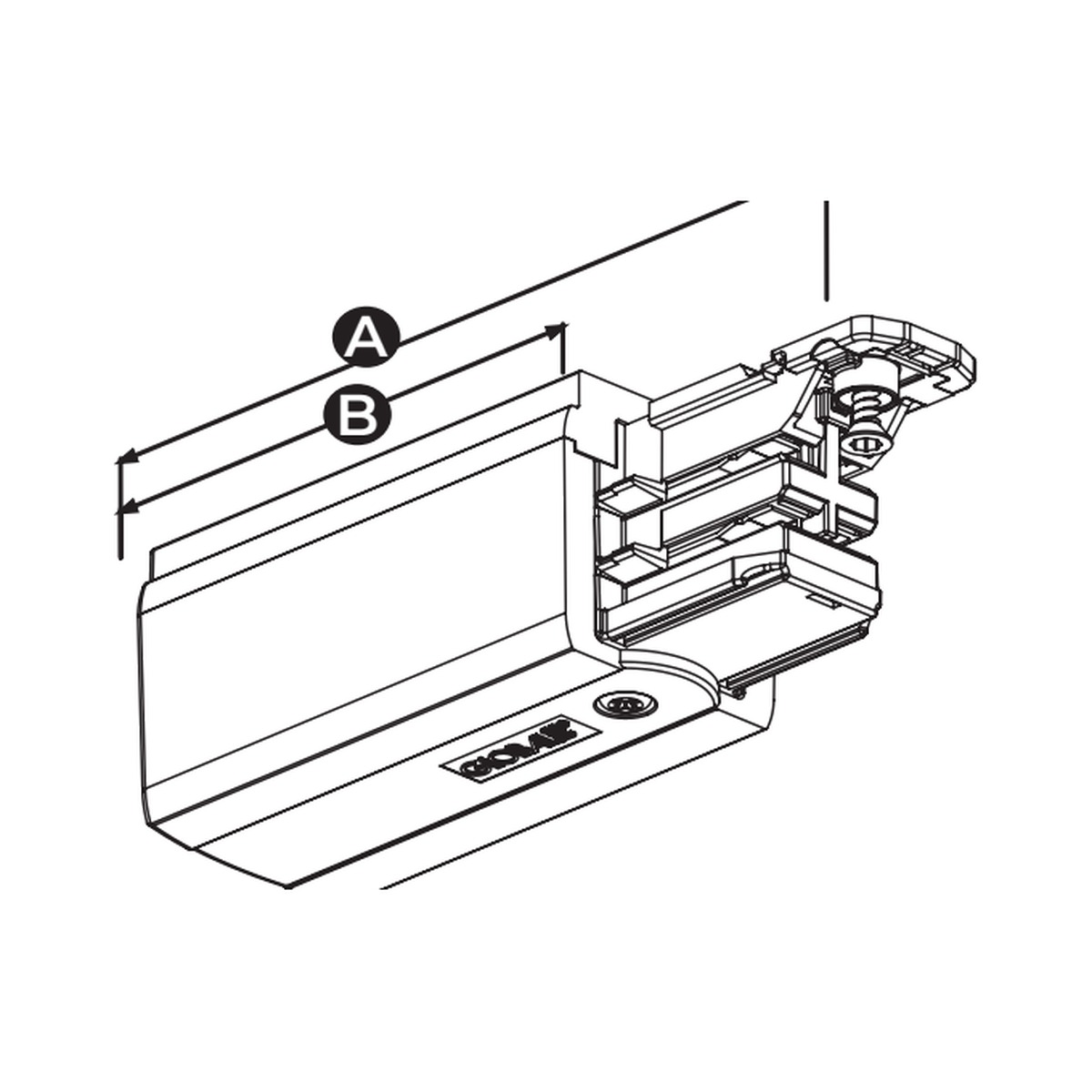

Dimension letters correspond to the measurement points marked on the technical drawing in the product gallery.
| Product code | XTS11-3 |
|---|---|
| Component | End Feed |
| Finish | Matt White |
| Pcs / pack | 1/100 |
| Range | Nordik Global Track |
| Warranty | 5 years |

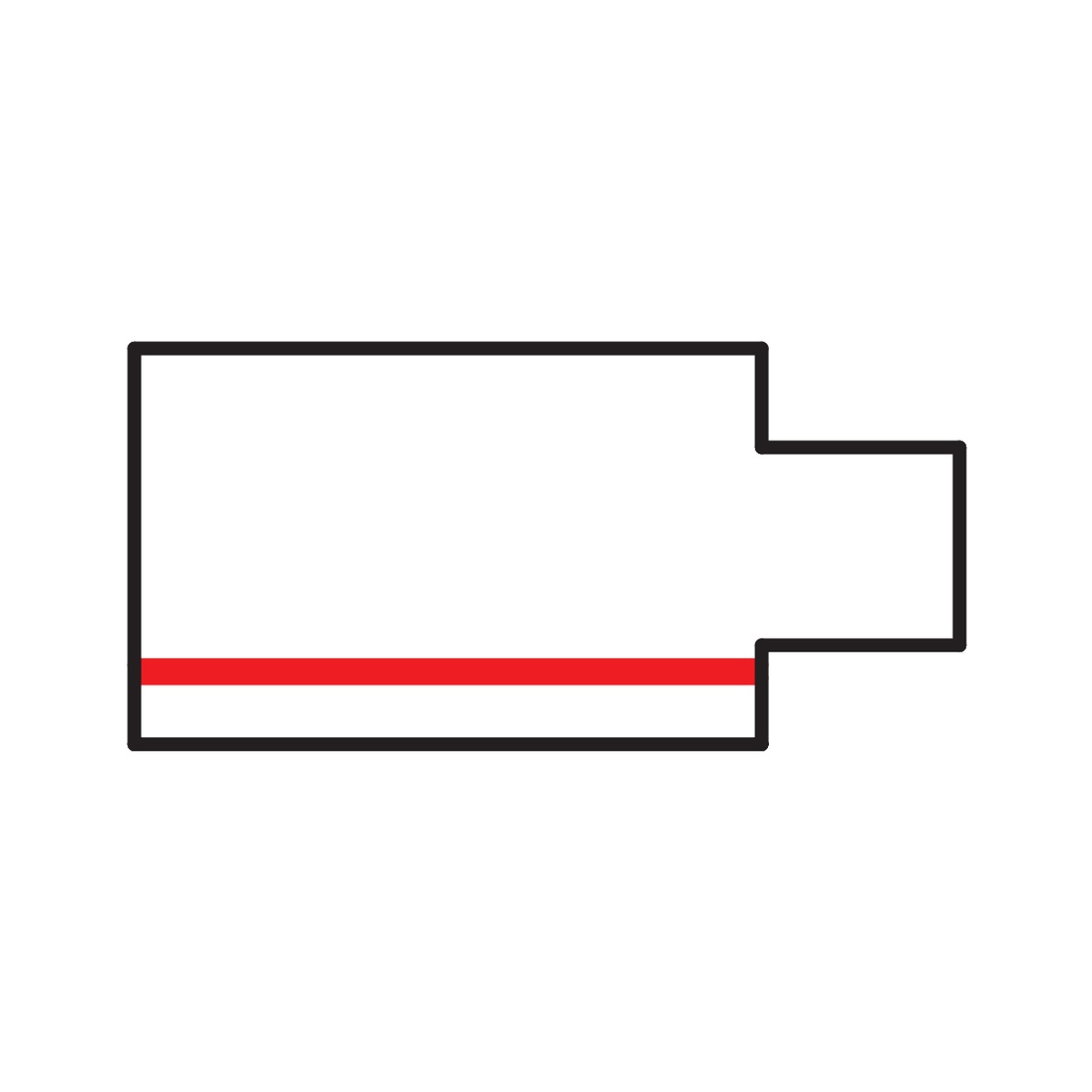

Check the polarity diagram before ordering. Codes within this component type are dimensionally identical and differ only in where the live conductor sits. The polarity diagram in the product gallery shows the conductor position for this code.
