XTS36-3
T-Feed • 166 x 100 mm • Matt White • 1/25 per pack

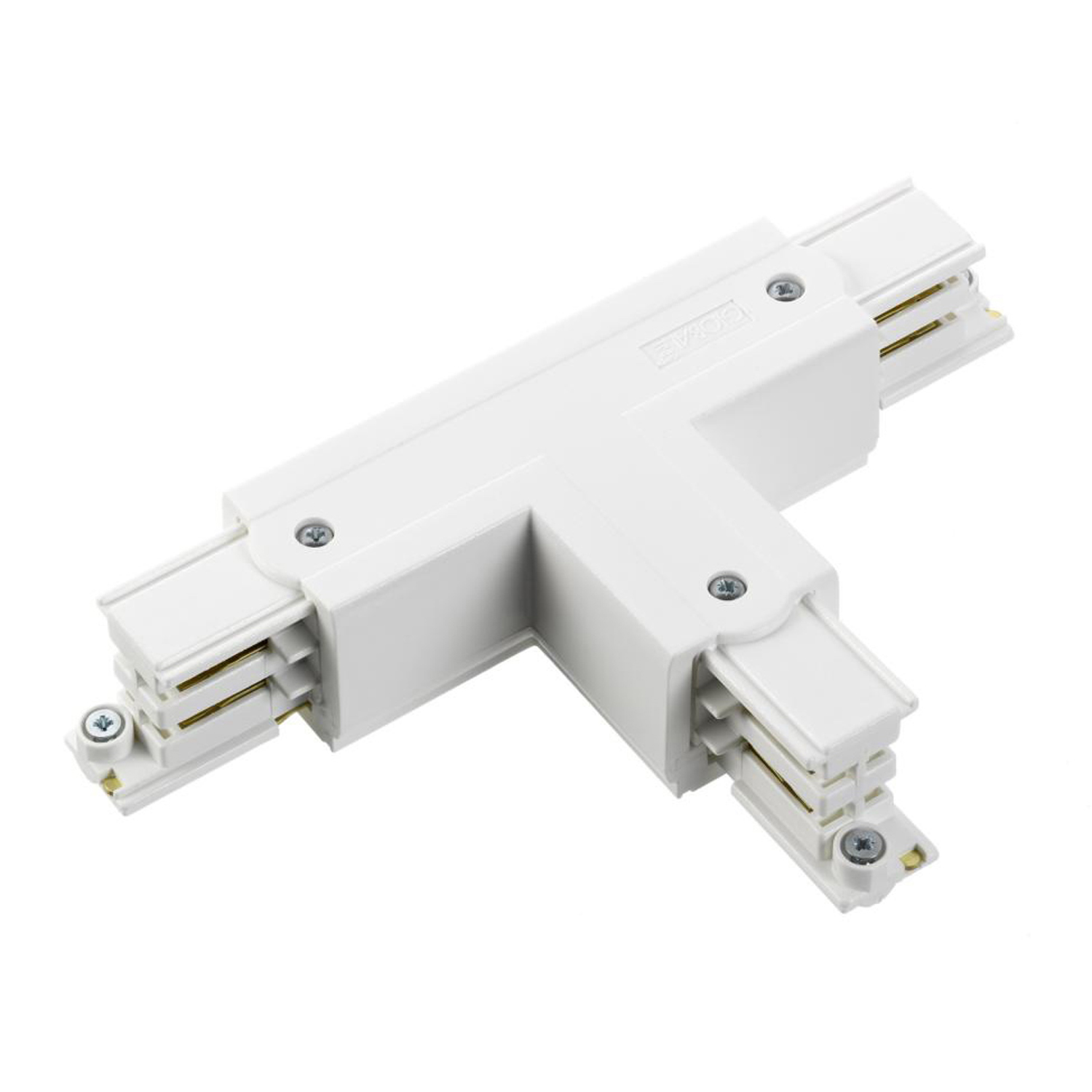

T-feed connector for the Nordik Global Track system. Creates a three-way junction from a single track run, with the polarity ridge maintained through the joint.
| A | 166 mm |
|---|---|
| B | 100 mm |
| C | 34 mm |
| D | 67 mm |
| E | 66 mm |
| F | 99 mm |
Dimension letters correspond to the measurement points marked on the technical drawing in the product gallery.
| Product code | XTS36-3 |
|---|---|
| Component | T-Feed |
| Finish | Matt White |
| Pcs / pack | 1/25 |
| Range | Nordik Global Track |
| Warranty | 5 years |
Check the polarity diagram before ordering. Codes within this component type are dimensionally identical and differ only in where the live conductor sits. The polarity diagram in the product gallery shows the conductor position for this code.
