XTS38-3
X-Feed • 166 x 100 mm • Matt White • 1/25 per pack
Four-way X-feed connector for the Nordik Global Track system. Forms a cross junction where four track runs meet, with a polarity ridge to keep circuit orientation consistent across the joint.
| A | 34 mm |
|---|---|
| B | 100 mm |
| C | 166 mm |

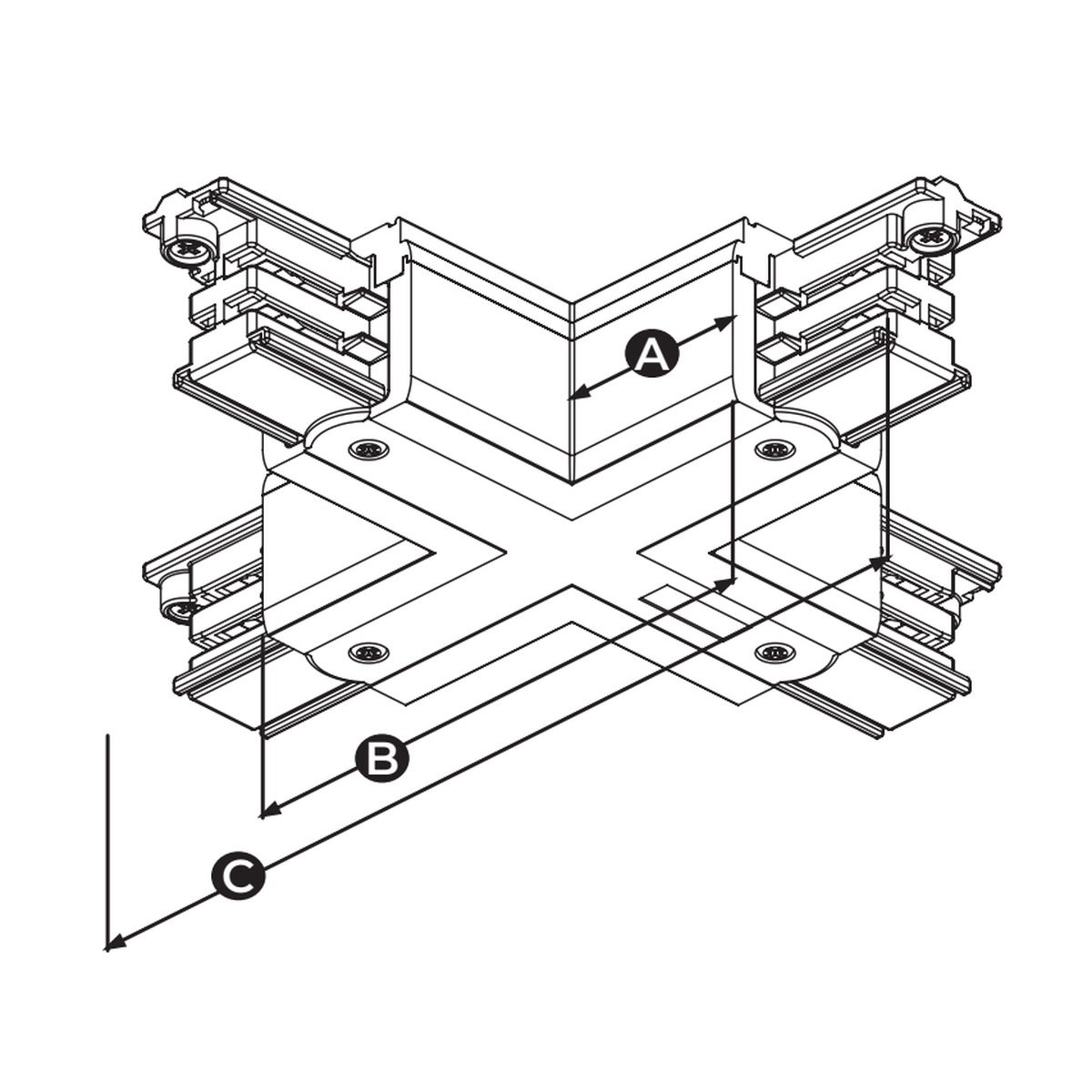

Dimension letters correspond to the measurement points marked on the technical drawing in the product gallery.
| Product code | XTS38-3 |
|---|---|
| Component | X-Feed |
| Finish | Matt White |
| Pcs / pack | 1/25 |
| Range | Nordik Global Track |
| Warranty | 5 years |

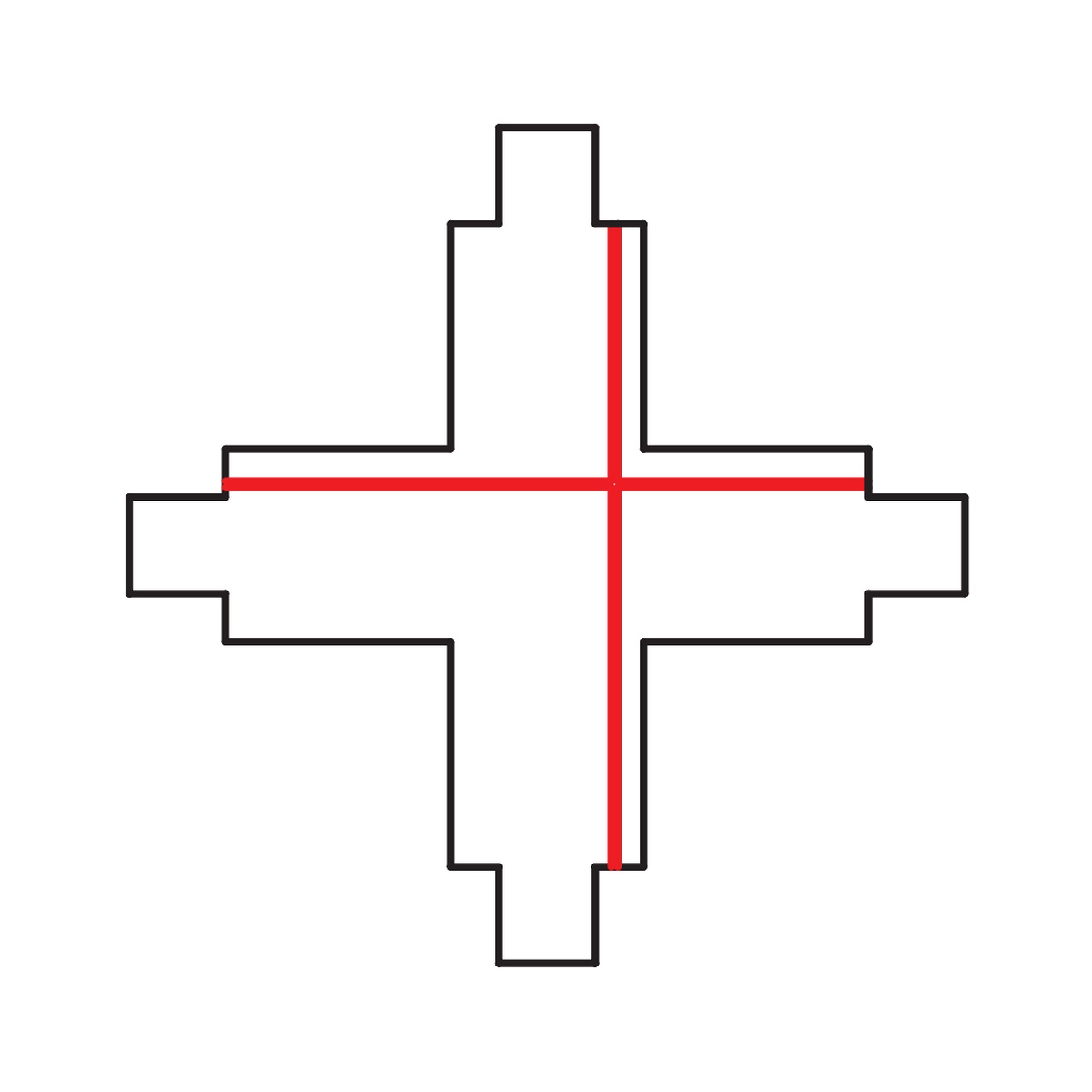

Check the polarity diagram before ordering. Codes within this component type are dimensionally identical and differ only in where the live conductor sits. The polarity diagram in the product gallery shows the conductor position for this code.
